Lustruire ansamblu flanșă a articulației din oțel inoxidabil Furnizori, producători OEM/ODM - Xinhang Special Material Co., Ltd. Hangzhou Branch

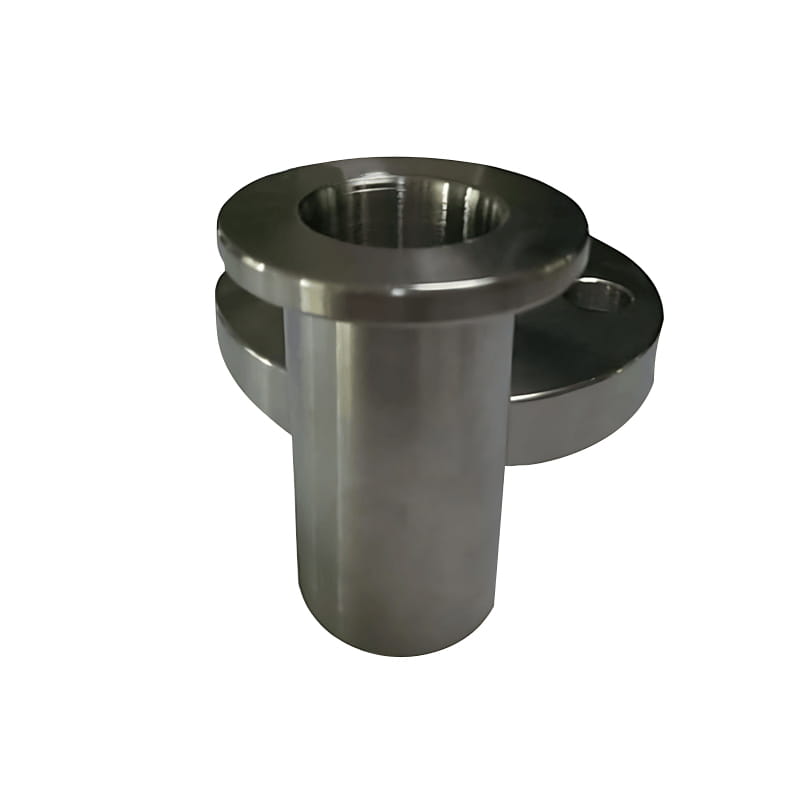

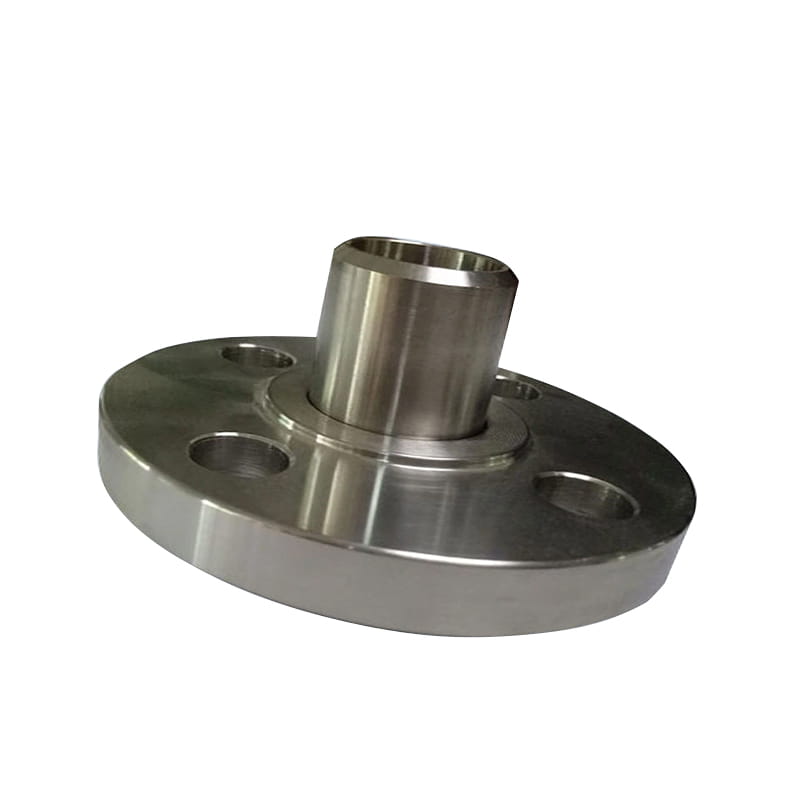

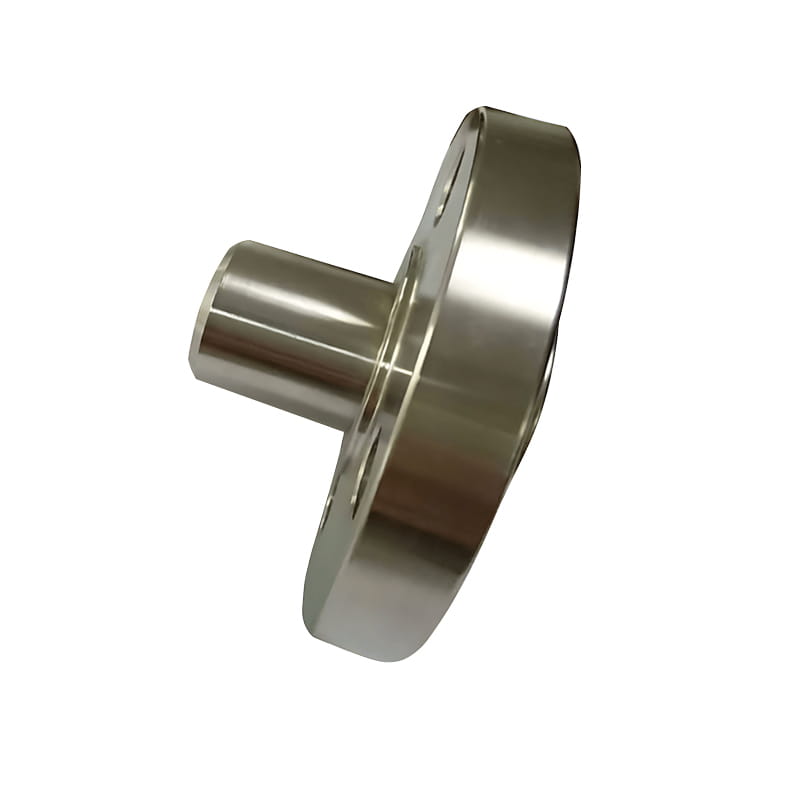

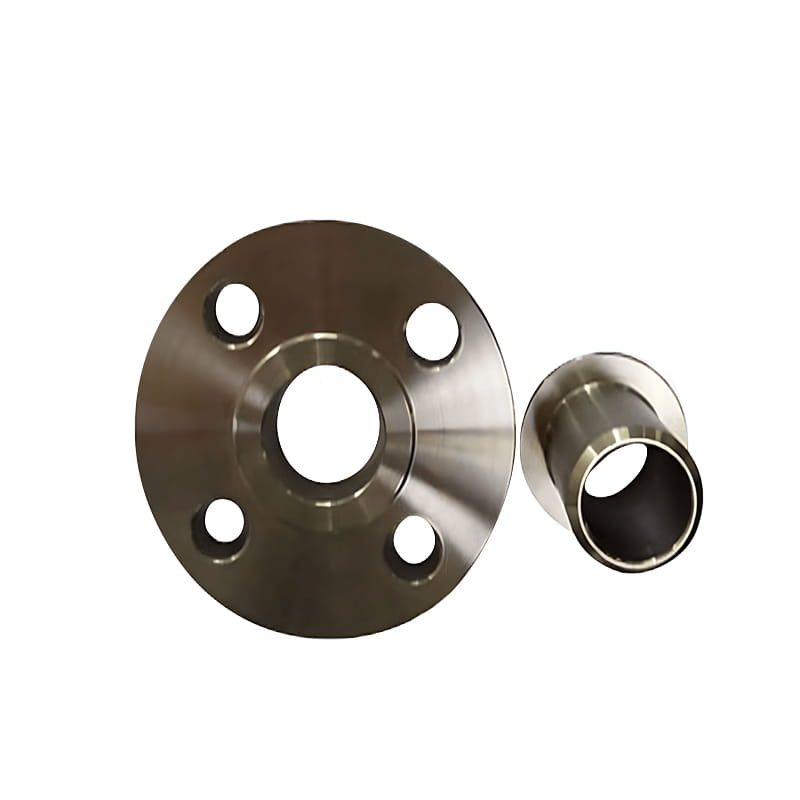

Introducere

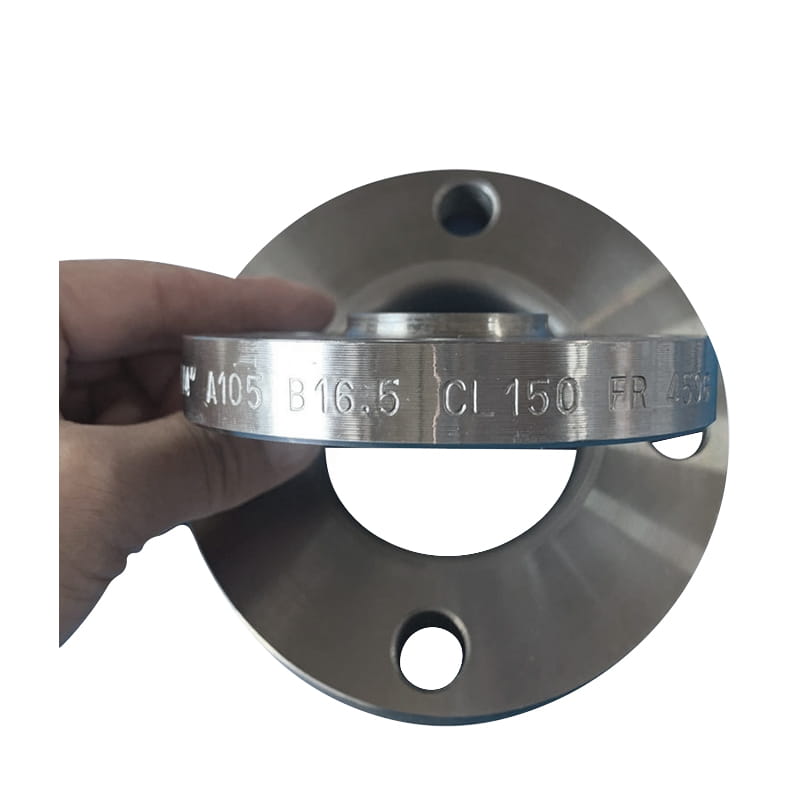

Standard	ANSI B16.5, ANSI B16.36, ANSI B16.47, EN1092, UNI 2277/2278, ANSI B16.48, JIS, BS 4504, DIN, SABS1123, GOST-12820
Material	Stainless Steel, Carbon Steel, Alloy Steel, Cupro Nickel (90/10, 70/30, 66/30/2/2), Hastelloy (C4, C-22, C276, B-2), Nickel (200 / 201), Monel (400 & K500), Inconel (600, 601, 625 & 825), Incolloy (800, 800H), Alloy 20, Duplex Steel, SS 904L, Titan (1 și 2) etc.
Suprafaţă	Ulei anti-rust, pictură (negru, galben), galvanizare, acoperire cu putere
Tip	Forjare, procesare CNC
dimensiune	½ inch - 24 inch
Timpul de livrare	În termen de 5-30 de zile de la primirea preplătită
Ambalare	Palet de placaj, palet din lemn, carcasă din lemn, etc.
Aplicație	Energie electrică, câmp petrolier, construcții navale, offshore, sisteme de apă, gaze naturale, proiecte de conducte, etc.

Clasa 150 lb.

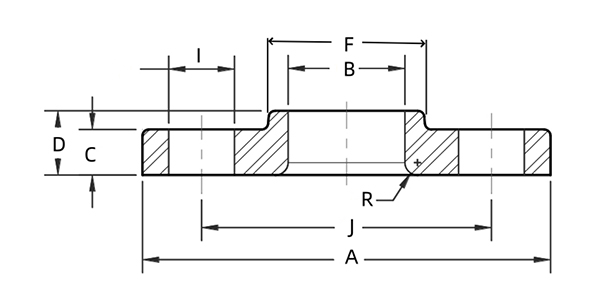

Nomînal Dimensiunea conductei	Exterior Diametru	În general Diametru	Interior Diametru	Flanşă Grosime	În general Lungime	Tur Rază	Hub Diametru	Număr de găuri	Gaură de șurub Diametru	Diametru de cerc de găuri	Greutate
în	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	I (mm)	J (mm)	kg/ bucată
½	21.30	88.90	22.90	11.20	15.70	3.00	30.20	4	15.70	60.45	0.38
¾	26.70	98.60	28.20	12.70	15.70	3.00	38.10	4	15.70	69.85	0.55
1	33.40	108.00	35.10	14.20	17.50	3.00	49.30	4	15.70	79.25	0.76
1 ¼	42.20	117.30	43.70	15.70	20.60	4.80	58.70	4	15.70	88.90	1.01
1 ½	48.30	127.00	50.00	17.50	22.40	6.40	65.00	4	15.70	98.60	1.30
2	60.30	152.40	62.50	19.10	25.40	7.90	77.70	4	19.10	120.70	2.03
2 ½	73.00	177.80	75.40	22.40	28.40	7.90	90.40	4	19.10	139.70	3.25
3	88.90	190.50	91.40	23.90	30.20	9.70	108.00	4	19.10	152.40	3.81
3 ½	101.60	215.90	104.10	23.90	31.75	9.70	122.20	8	19.10	177.80	4.76
4	114.30	228.60	116.80	23.90	33.30	11.20	134.90	8	19.10	190.50	5.25
5	141.30	254.00	114.50	23.90	36.60	11.20	163.60	8	22.40	215.90	6.02
6	168.30	279.40	171.50	25.40	39.60	12.70	192.00	8	22.40	241.30	7.40
8	219.10	342.90	222.30	28.40	44.50	12.70	246.10	8	22.40	298.50	12.10
10	273.00	406.40	277.40	30.20	49.30	12.70	304.80	12	25.40	362.00	16.40
12	323.80	482.60	328.20	31.75	55.60	12.70	365.30	12	25.40	431.80	26.10
14	355.60	533.40	360.20	35.10	79.25	12.70	400.10	12	28.40	476.30	34.50
16	406.40	596.90	411.20	36.60	87.40	12.70	457.20	16	28.40	539.80	44.60
18	457.20	635.00	462.30	39.60	96.80	12.70	505.00	16	31.75	577.90	48.70
20	508.00	698.50	514.40	42.90	103.10	12.70	558.80	20	31.75	635.00	61.60
24	609.60	812.80	616.00	47.80	111.30	12.70	663.40	20	35.10	749.30	86.60

Clasa 300 lb.

Nomînal Dimensiunea conductei	Exterior Diametru	În general Diametru	Interior Diametru	Flanşă Grosime	În general Lungime	Tur Rază	Hub Diametru	Număr de găuri	Gaură de șurub Diametru	Diametru de cerc de găuri	Greutate
în	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	I (mm)	J (mm)	kg/ bucată
½	21.30	95.20	22.90	14.20	22.30	3.00	38.10	4	15.70	66.55	0.62
¾	26.70	117.30	28.20	15.70	25.40	3.00	47.70	4	19.00	82.50	1.10
1	33.40	123.90	35.10	17.50	26.90	3.00	53.80	4	19.00	88.90	1.33
1 ¼	42.20	133.30	43.70	19.00	26.90	4.80	63.50	4	19.00	98.50	1.65
1 ½	48.30	155.4	50.00	20.60	30.20	6.40	69.85	4	22.30	114.30	2.44
2	60.30	165.10	62.50	22.30	33.20	7.90	84.00	8	19.10	127.00	2.83
2 ½	73.00	190.50	75.40	25.40	38.10	7.90	100.00	8	22.30	149.30	4.25
3	88.90	209.50	91.40	28.40	42.90	9.70	117.30	8	22.30	168.10	5.78
3 ½	101.60	228.60	104.10	30.20	44.40	9.70	133.30	8	22.30	184.10	7.27
4	114.30	254.00	116.80	31.70	47.70	11.20	146.00	8	22.30	200.10	9.55
5	141.30	279.40	114.50	35.00	50.80	11.20	177.80	8	22.30	234.90	12.20
6	168.30	317.50	171.50	36.50	52.30	12.70	206.20	12	22.30	267.70	15.50
8	219.10	381.00	222.30	41.10	61.90	12.70	260.30	12	25.40	330.20	24.10
10	273.00	444.50	277.40	47.70	95.20	12.70	320.50	16	28.40	387.30	34.40
12	323.80	520.70	328.20	50.80	101.60	12.70	374.60	16	31.70	450.80	50.40
14	355.60	584.20	360.20	53.80	111.20	12.70	425.40	20	31.70	514.3	70.90
16	406.40	647.70	411.20	57.15	120.60	12.70	482.60	20	35.00	571.50	89.50
18	457.20	711.20	462.30	60.45	130.00	12.70	533.40	24	35.00	628.60	111.00
20	508.00	774.70	514.40	63.50	139.70	12.70	587.20	24	35.00	685.80	137.00
24	609.60	914.40	616.00	69.80	152.40	12.70	701.50	24	41.10	812.80	204.00

Clasa 400 lb.

Nomînal Dimensiunea conductei	Exterior Diametru	În general Diametru	Interior Diametru	Flanşă Grosime	În general Lungime	Tur Rază	Hub Diametru	Număr de găuri	Gaură de șurub Diametru	Diametru de cerc de găuri	Greutate
în	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	I (mm)	J (mm)	kg/ bucată
½	21.30	95.30	22.90	14.20	22.40	3.00	38.10	4	15.70	66.55	0.72
¾	26.70	117.30	28.20	15.70	25.40	3.00	47.80	4	19.10	82.60	1.25
1	33.40	124.00	35.10	17.50	26.90	3.00	53.80	4	19.10	88.90	1.50
1 ¼	42.20	133.40	43.70	20.60	28.40	4.80	63.50	4	19.10	98.60	2.00
1 ½	48.30	155.40	50.00	22.40	31.75	6.40	69.85	4	22.40	114.30	2.92
2	60.30	165.10	62.50	25.40	36.60	7.90	84.10	8	19.10	127.00	3.55
2 ½	73.00	190.50	75.40	28.40	41.10	7.90	100.10	8	22.40	149.40	5.23
3	88.90	209.60	91.40	31.75	46.00	9.70	117.30	8	22.40	168.10	6.95
3 ½	101.60	228.60	104.10	35.10	49.30	9.70	133.40	8	25.40	184.20	8.78
4	114.30	254.00	116.80	35.10	50.80	11.20	146.10	8	25.40	200.20	10.90
5	141.30	279.40	114.50	38.10	53.80	11.20	177.80	8	25.40	235.00	13.70
6	168.30	317.50	171.50	41.10	57.15	12.70	206.20	12	25.40	269.70	18.00
8	219.10	381.00	222.30	47.80	68.30	12.70	260.40	12	28.40	330.20	28.30
10	273.00	445.00	277.40	53.80	101.60	12.70	320.50	16	31.75	387.40	38.80
12	323.80	520.70	328.20	57.15	108.00	12.70	374.70	16	35.10	450.90	56.60
14	355.60	584.20	360.2	60.45	117.30	12.70	425.50	20	35.10	514.40	78.60
16	406.40	647.70	411.20	63.50	127.00	12.70	482.60	20	38.10	571.50	100.00
18	457.20	711.20	462.30	66.55	136.70	12.70	533.40	24	38.10	628.70	122.00
20	508.00	774.70	514.40	69.85	146.10	12.70	587.20	24	41.10	685.80	145.00
24	609.60	914.40	616.00	76.20	158.80	12.70	701.50	24	47.80	812.80	217.00

Clasa 600 lb.

Nomînal Dimensiunea conductei	Exterior Diametru	În general Diametru	Interior Diametru	Flanşă Grosime	În general Lungime	Tur Rază	Hub Diametru	Număr de găuri	Gaură de șurub Diametru	Diametru de cerc de găuri	Greutate
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	I (mm)	J (mm)	kg/ bucată
½	21.30	95.30	22.90	14.20	22.40	3.00	38.10	4	15.70	66.55	0.72
¾	26.70	117.30	28.20	15.70	25.40	3.00	47.80	4	19.10	82.60	1.25
1	33.40	124.00	35.10	17.50	26.90	3.00	53.80	4	19.10	88.90	1.50
1 ¼	42.20	133.40	43.70	20.60	28.40	4.80	63.50	4	19.10	98.60	2.00
1 ½	48.30	155.4	50.00	22.40	31.75	6.40	69.85	4	22.40	114.30	2.92
2	60.30	165.10	62.50	25.40	36.60	7.90	84.10	8	19.10	127.00	3.55
2 ½	73.00	190.50	75.40	28.40	41.10	7.90	100.10	8	22.40	149.40	5.23
3	88.90	209.60	91.40	31.75	46.00	9.70	117.30	8	22.40	168.10	6.95
3 ½	101.60	228.60	104.10	35.10	49.30	9.70	133.40	8	25.40	184.20	8.78
4	114.30	273.10	116.80	38.10	53.80	11.20	152.40	8	25.40	215.9	14.40
5	141.30	330.20	114.50	44.50	60.45	11.20	189.00	8	28.40	266.70	24.30
6	168.30	355.60	171.50	47.80	66.55	12.70	222.30	12	28.40	292.10	28.50
8	219.10	419.10	222.30	55.60	76.20	12.70	273.10	12	31.75	349.30	43.10
10	273.00	508.00	277.40	63.50	111.30	12.70	342.90	16	35.10	431.80	70.50
12	323.80	558.80	328.20	66.55	117.30	12.70	400.10	20	35.10	489.00	86.10
14	355.60	603.30	360.20	69.85	127.00	12.70	431.80	20	38.10	527.10	100.00
16	406.40	685.80	411.20	76.20	139.70	12.70	495.30	20	41.10	603.30	145.00
18	457.20	743.00	462.30	82.60	152.40	12.70	546.10	20	44.50	654.10	177.00
20	508.00	812.80	514.40	88.90	165.10	12.70	609.60	24	44.50	723.90	225.00
24	609.60	939.80	616.00	101.60	184.20	12.70	717.60	24	50.80	838.20	318.00

Clasa 900 lb.

Nominal Dimensiunea conductei	Exterior Diametru	În general Diametru	Interior Diametru	Flanşă Grosime	În general Lungime	Tur Rază	Hub Diametru	Număr de găuri	Gaură de șurub Diametru	Diametru de cerc de găuri	Greutate
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	I (mm)	J (mm)	kg/ bucată
½	21.30	120.60	22.90	22.30	31.70	3.00	38.10	4	22.30	82.50	1.71
¾	26.70	130.00	28.20	25.40	35.00	3.00	44.40	4	22.30	88.90	2.30
1	33.40	149.30	35.10	28.40	41.10	3.00	52.30	4	25.40	101.60	3.40
1 ¼	42.20	158.70	43.70	28.40	41.10	4.80	63.50	4	25.40	111.20	3.85
1 ½	48.30	177.80	50.00	31.70	44.40	6.40	69.85	4	28.40	123.90	5.28
2	60.30	215.90	62.50	38.10	57.15	7.90	104.60	8	25.40	165.10	9.78
2 ½	73.00	244.30	75.40	41.10	63.50	7.90	123.90	8	28.40	190.50	13.60
3	88.90	241.30	91.40	38.10	53.80	9.70	127.00	8	25.40	190.50	11.30
4	114.30	292.10	116.80	44.40	69.85	11.20	158.70	8	31.70	234.90	19.20
5	141.30	349.20	114.50	50.80	79.25	11.20	190.50	8	35.00	279.40	31.20
6	168.30	381.00	171.50	55.60	85.80	12.70	234.90	12	31.70	317.50	40.50
8	219.10	469.90	222.30	63.50	114.30	12.70	298.40	12	38.10	393.70	71.50
10	273.00	546.10	277.40	69.85	127.00	12.70	368.30	16	38.10	469.90	104.00
12	323.80	609.60	328.20	79.25	142.70	12.70	419.10	20	38.10	533.40	139.00
14	355.60	641.30	360.20	85.80	155.40	12.70	450.80	20	41.10	558.80	161.00
16	406.40	704.80	411.20	88.90	165.10	12.70	508.00	20	44.40	615.90	194.00
18	457.20	787.40	462.30	101.60	190.50	12.70	565.10	20	50.80	685.80	267.00
20	508.00	857.20	514.40	107.90	209.50	12.70	622.30	20	53.80	749.30	334.00
24	609.60	1041.40	616.00	139.70	266.70	12.70	749.30	20	66.55	901.70	618.00

Clasa 1500 lb.

Nominal Dimensiunea conductei	Exterior Diametru	În general Diametru	Interior Diametru	Flanşă Grosime	În general Lungime	Tur Rază	Hub Diametru	Număr de găuri	Gaură de șurub Diametru	Diametru de cerc de găuri	Greutate
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	I (mm)	J (mm)	kg/ bucată
½	21.30	120.60	22.90	22.30	31.70	3.00	38.10	4	22.30	82.50	1.71
¾	26.70	130.00	28.20	25.40	35.00	3.00	44.40	4	22.30	88.90	2.30
1	33.40	149.30	35.10	28.40	41.10	3.00	52.30	4	25.40	101.60	3.40
1 ¼	42.20	158.70	43.70	28.40	41.10	4.80	63.50	4	25.40	111.20	3.85
1 ½	48.30	177.80	50.00	31.70	44.40	6.40	69.85	4	28.40	123.90	5.28
2	60.30	215.90	62.50	38.10	57.15	7.90	104.60	8	25.40	165.10	9.78
2 ½	73.00	244.30	75.40	41.10	63.50	7.90	123.90	8	28.40	190.50	13.60
3	88.90	266.70	91.40	47.70	73.15	9.70	133.30	8	31.70	203.2	17.80
4	114.30	311.10	116.80	53.80	90.40	11.20	162.00	8	35.00	241.30	27.50
5	141.30	374.60	114.50	73.15	104.60	11.20	196.80	8	41.10	292.10	51.50
6	168.30	399.70	171.50	82.50	119.10	12.70	228.60	12	38.10	317.50	62.00
8	219.10	482.6	222.30	91.90	142.70	12.70	292.10	12	44.40	393.70	105.00
10	273.00	584.20	277.40	107.90	177.80	12.70	368.30	12	50.80	482.60	179.00
12	323.80	673.10	328.20	123.90	218.90	12.70	450.80	16	53.80	571.50	269.00
14	355.60	749.30	360.20	133.30	241.30	12.70	495.30	16	60.45	635.00	365.00
16	406.40	825.50	411.20	146.00	260.30	12.70	552.40	16	66.55	704.80	459.00
18	457.20	914.40	462.30	162.00	276.30	12.70	596.90	16	73.15	774.70	598.00
20	508.00	984.20	514.40	177.80	292.10	12.70	641.30	16	79.25	831.80	712.00
24	609.60	1168.40	616.00	203.20	330.20	12.70	726.00	16	91.90	990.60	1090.00

Clasa 2500 lb.

Nominal Dimensiunea conductei	Exterior Diametru	În general Diametru	Interior Diametru	Flanşă Grosime	În general Lungime	Tur Rază	Hub Diametru	Număr de găuri	Gaură de șurub Diametru	Diametru de cerc de găuri	Greutate
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	I (mm)	J (mm)	kg/ bucată
½	21.30	133.40	22.90	30.20	39.60	3.00	42.90	4	22.40	88.90	2.92
¾	26.70	139.70	28.20	31.75	42.90	3.00	50.80	4	22.40	95.30	3.40
1	33.40	158.80	35.10	35.10	47.80	3.00	57.15	4	25.40	108.00	4.77
1 ¼	42.20	184.20	43.70	38.10	52.30	4.80	73.15	4	28.40	130.00	7.08
1 ½	48.30	203.20	50.00	44.50	60.45	6.40	79.25	4	31.75	146.10	9.93
2	60.30	235.00	62.50	50.80	69.85	7.90	95.30	8	28.40	171.50	14.70
2 ½	73.00	266.70	75.40	57.15	79.25	7.90	114.30	8	31.75	196.90	21.30
3	88.90	304.80	91.40	66.55	91.90	9.70	133.40	8	35.10	228.60	32.30
4	114.30	355.60	116.80	76.20	108.00	11.20	165.10	8	41.10	273.10	52.50
5	141.30	419.10	114.50	91.90	130.00	11.20	203.20	8	47.80	323.90	82.60
6	168.30	482.60	171.50	108.00	152.40	12.70	235.00	8	53.80	368.30	127.00
8	219.10	552.50	222.30	127.00	177.80	12.70	304.80	12	53.80	438.20	186.00
10	273.00	367.10	277.40	165.10	228.60	12.70	374.70	12	66.55	539.80	352.00
12	323.80	762.00	328.20	184.20	254.00	12.70	441.50	12	73.15	619.30	501.00
